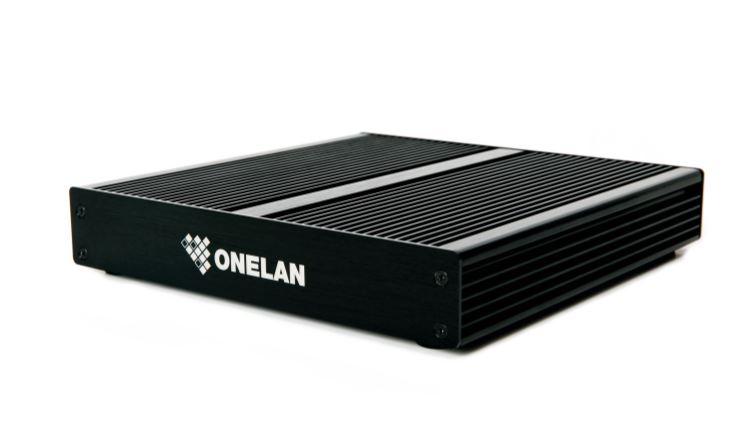

OneLan HD100F Media Player



  • The NTB HD100F is ONELAN's mid-range slim profile, digital signage player for
         use as a publisher in small networks. Ideal for Touch Interactivity and Menu Board
         applications.





  • OneLan HD100F Media Player Specification



    Product Specifications
    Processor Memory
    Intel Celeron Broadwell 3215U RAM: 4GiB
    Disc: 500GB Hard Disc (HDD)
    Video Output Audio Output
    Connectors: HDMI, DP (VGA and DVI with adaptors) Connectors: 3.5mm mini-jack socket, HDMI and DisplayPort
    Media Network
    Video: H.264, MPEG-1, MPEG-2, MPEG-4 (ASP and AVC), QuickTime®, WMV 9, Video cropping, HD to 1080p.
    Animation: Adobe® Flash® (SWF) 11, HTML (with JavaScript), HTML cropping and zoom, HTML as per WebKit 531.2+
    Images: JPEG, TIFF, GIF, PNG, BMP
    Audio: MPEG-1 (layers 1, 2 and 3), MPEG-2 (AAC), AC3, MP3, WAV
    Text: Multiple fonts, speeds, colours and directions. RSS newsfeed.
    Clocks: Digital (multilingual and localisable date and time formats)
    Internet: HTML (Web pages), RSS feeds (with multilingual support),XML files
    Network: Optional IP video stream in License, MPEG/UDP
    Other Ports Physical
    USB: 1 x USB 2.0, 1 x USB 3.0
    RS-232: Optional USB to RS-232 adapter
    Dimension: 280mm(W) x 268mm(D) x 77mm(H)
    Weight: 4,260g (including PSU and main cabling)
    Power: 180W internal PSU
    Cooling: FAN
    Mounting: Optional NTB wall or rack mount brackets
