Kanexpro UltraSlim 4K/30 HDMI® Extender over HDBaseT™- 230ft. (70m)
MPN: EXT-HDBT70M

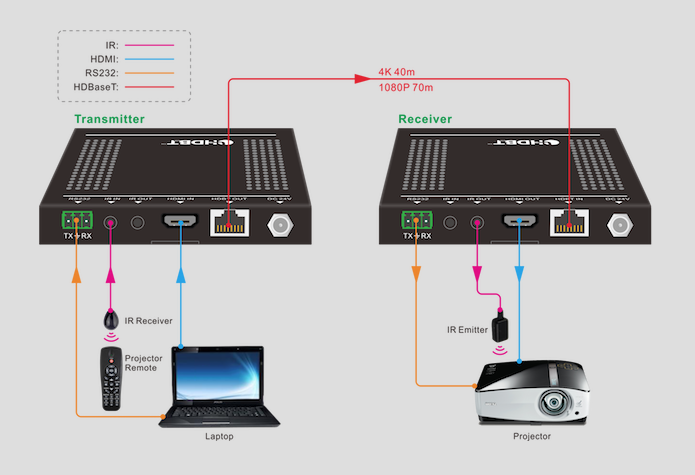

The KanexPro EXT-HDBT70M is an UltraSlim, HDCP 2.2 compliant extender set consisting of a transmitter and receiver.
It uses HDBaseT technology to transmit uncompressed, high-resolution 1080p/ 4K signals from transmitter to the receiver via a CAT5e/CAT6a cable at a distance of up to 70/40m.
The extender set supports CEC, bi- directional RS232 & IR control, and bi-directional PoH (power over HDBaseT) function.
Kanexpro UltraSlim 4K/30 HDMI® Extender over HDBaseT™- 230ft. (70m) Features
UltraSlim point-to-point HDMI extender
Extend full HD 1080p up to 70m
Extend 4K/30 up to 40m
Supports Ultra HD 4K@30Hz resolutions
Video resolutions from 1080p/60@48bit
Bi-directional PoH
HDCP 2.2 and EDID compliant
Bandwidth 10.2 Gbps
Bi-directional RS-232 & IR control
Supports CEC/IR/RS-232 pass-thru
IR input/output
Dolby TrueHD & DTS Master Audio ready
Supports uncompressed audio
Includes separate mounting ears
One locking power supply included
Backed by KanexPro 3-year parts
Please Note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.
|
