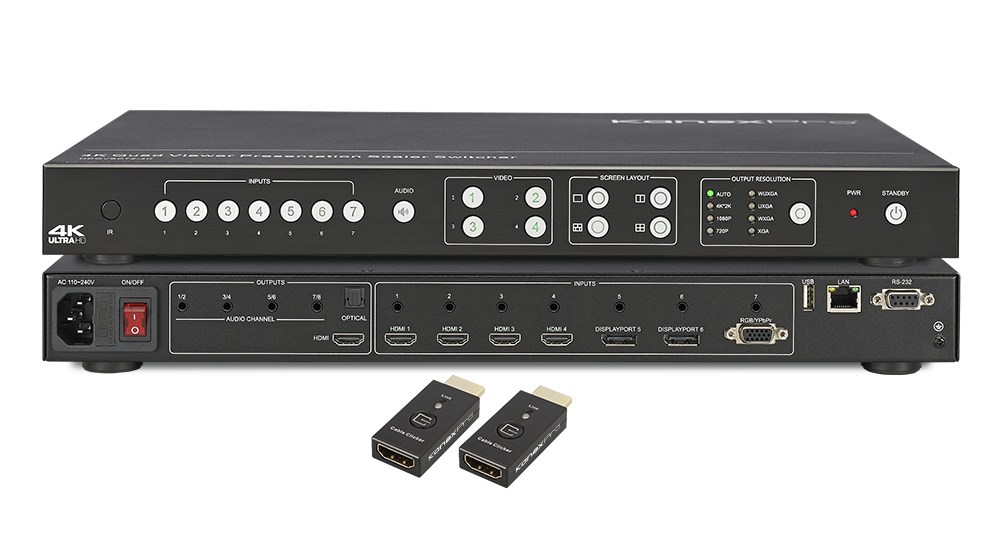

KanexPro 4K Video Tiler & Scaler Switcher w/ HDMI & Click-to-Show me controller
MPN: HDBT-VTSC72-4K


  • The KanexPro HD-VTSC72-4K is a 7-input, 1 output to HDMI presentation scaler- switcher engineered to upscale HDMI / DisplayPort and VGA devices.

    Compliant with the latest HDCP specifications, this Quad-Viewer can also be controlled via RS-232 and TCP/IP.

    It supports native 4K inputs and outputs with audio de-embedder and breakaway audio switching to support unbalanced stereo. Ideally used in collaboration, meeting rooms, classrooms and video conferencing applications.


  • KanexPro 4K/60 HDBaseT™ 4x4 Matrix Switcher Features

  • 4K Multiviewer Switcher

  • Elite 4K scaling engine

  • Includes two 4K-HDCLICKERS

  • Supports Quad-View Windowing

  • Multiple Inputs

  • Supports HDMI and DisplayPort

  • Supports multiple HDMI output resolutions

  • Output scaler

  • Independently select the source to be assigned

  • Incorporates DP 1.2a resolutions

  • Supports MHL inputs via HDMI

  • Support auto-scaling

  • Provides Break away audio switch

  • Audio embedding & De-embedding

  • Support auto-selection

  • Provisions unbalanced 7.1 analog audio

  • optical digital audio output

  • Control via front panel buttons

  • Easily integrates with any Video conferencing

  • Integrates with table or wall cable connection

  • 1U rack mountable enclosure

  • Mounting hardware included

  • 3 –Year KanexPro Warranty



  • Collaboration starts with a Quad-View Tiler
    The more screens that teams have available to share their work, the more they can accomplish. The vast majority of meeting rooms in the enterprise have only one or two screens available for sharing. This is a bottleneck to the flow of visual information and an inhibitor to collaboration. KanexPro HD-VTSC72-4K Presentation System removes the bottleneck by creating an exceptional Quad-view window on to one large 4K screen, simultaneously showing four full-HD content or with pre-configured layouts, one can just use the 4K-HD/ DP CLICKERs, IR remote, the front-panel buttons to quadruple windows, triple windows, double windows and single window to show their work.
