KanexPro HDMI® 1x4 Distribution Amplifier over CAT5e/6 Outputs
MPN: SP-HDCAT1X4
The KanexPro SP-HDCAT1X4 is a one transmitter and four receiver amplifier set that enables high resolution 1080p HDMI signals to be routed over distances up to 394ft.(120m) significantly beyond the capability of standard HDMI connectivity.

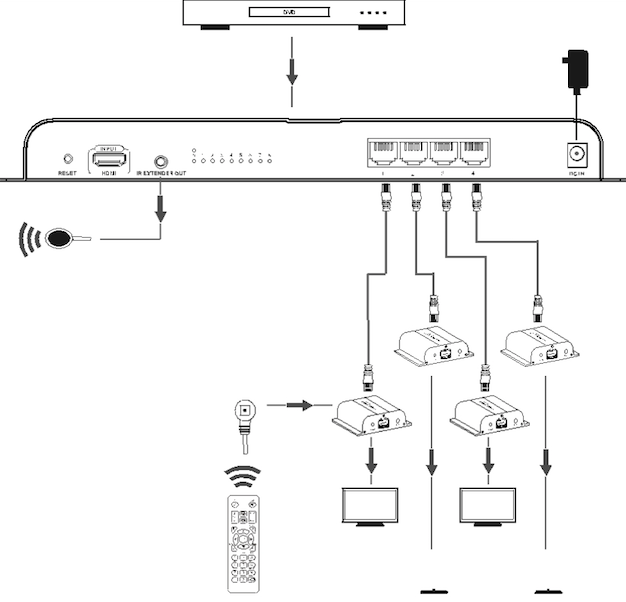

When connected together using four economical and installer friendly CAT5e/6 cables, the transmitter inputs the HDMI signal into four identical outputs carrying 394 ft./1080p resolution simultaneously from the provided receivers.
KanexPro HDMI® 1x4 Distribution Amplifier over CAT5e/6 Outputs Features
Distribute & Extend HDMI
Includes 4-independent receivers
Supports transmission up to 394ft.
Supports full HD 1080p
Can be cascaded to more displays
Works on existing network
Control via IR (kits included)
Supports 5.1, 7.1 digital audio
Live status indicator thru LED's
HDCP 1.4 & EDID support
Simple set up with zero configuration
Wall-mountable design
Applications:
Perfect for house of worship centers, retail stores and residential /smart home theater applications where one HDMI device can be distributed to four displays over a single network cable up to 394 ft. without losing signal integrity.
|
