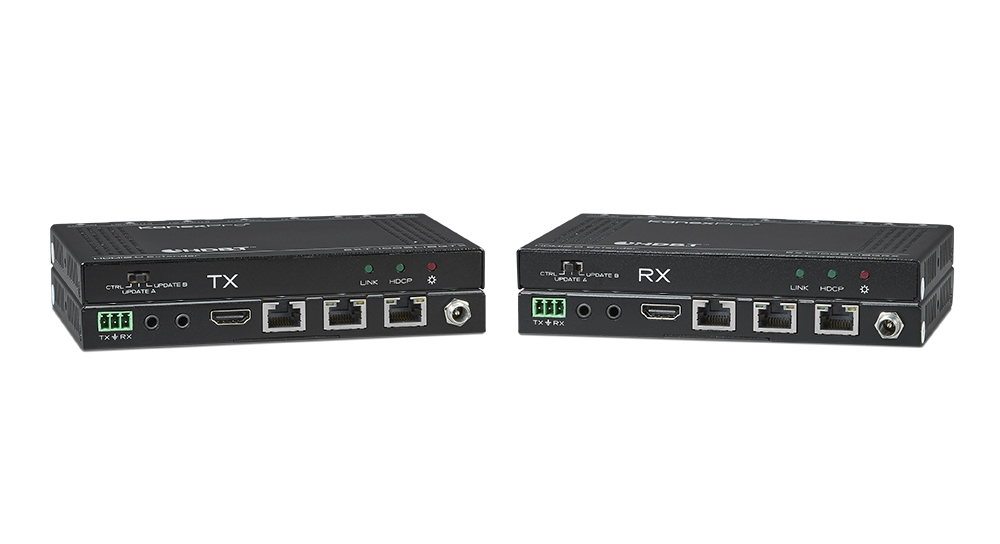

KanexPro UltraSlim 4K/60 HDMI® 2.0 Extender over HDBaseT™ up to 330ft & PoH

  • The KanexPro EXT-100SL18G extender is an UltraSlim 4K /60Hz transmitter -
         receiver set designed to extend natural and uncompressed ultra HD 4K signals
         from your HDMI source device to a 4K display remotely located 230 feet away and
         full HD 1080p signals up to 330ft.(100m).
  • It supports PoH (power over HDBaseT) requiring you to power only from one side,
         either the sender or receiver. For dynamic range and wide color range (gamut)
         HDR and 4:4:4 Chroma color sampling are one of the key features of these

  • KanexPro UltraSlim 4K/60 HDMI® 2.0 Extender over HDBaseT™ up to 330ft & PoH Features

  • Ultra Slim 230ft. (70m) HDMI extender over HDBaseT w/ PoH

  • Extend up to 70m for 4K/60 video w/ 4:4:4 Chroma

  • HDR (high dynamic range) & wider color gamut support

  • Supports Ultra HD 4K@60Hz resolutions

  • Video resolutions from 1080p/60@48bit

  • 18 Gbps bandwidth

  • Bi-directional PoH (power over HDBaseT)

  • HDCP 2.2 and EDID compliant

  • CEC Pass-thru

  • IR input/output - embedded over CATx extension

  • Dolby TrueHD & DTS Master Audio ready

  • Supports uncompressed audio - LPCM

  • Bi-directional RS-232 & IR control

  • Ultra Slim enclosure w/ separate mounting ears

  • One locking power supply included

  • Backed by KanexPro 3-year parts and labor warranty

  • Please Note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.

    Ideal for use in digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and home theater where uncompressed HDMI, control, power over ethernet and LAN serving can be remotely extended up to 330ft. (100m).
