KanexPro 4K HDBaseT™ 100m HDMI® Extender w/ PoE Support
MPN: EXT-HD100MHBT

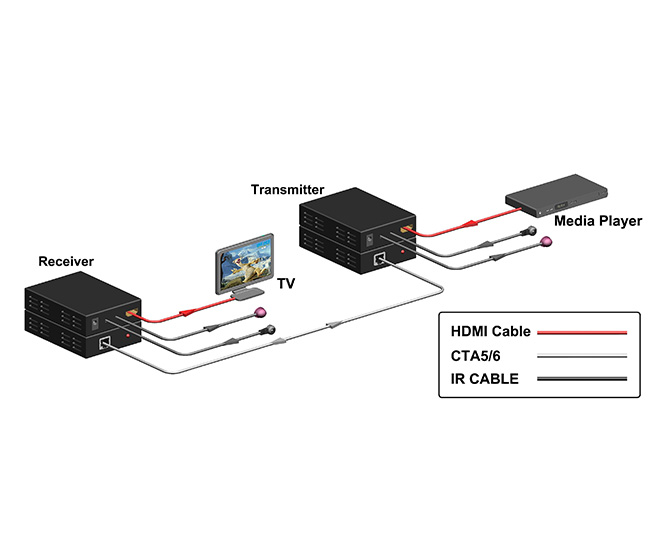

  • The KanexPro Long-Runner employs HDBaseT technology to route high-resolution
         HDMI signals from the source up to 330 feet (100m) to your HD display.

  • It supports resolutions up to 4Kx2K (4 times the 1080p), multi-channel audio and IR
         extension over a single low cost CAT5e/6 cable.

  • Fully compliant with HDCP, EDID and CEC controls, the Long-runner HDMI
         extender is an ideal solution for HDMI extension over long distances.






  • KanexPro 4K HDBaseT™ 100m HDMI® Extender w/ PoE Support Features


  • Extend HDMI signals up to 330 ft. (100m) on single CAT6 cable

  • Supports Power over Ethernet from Tx or Rx

  • 4K x 2K@30Hz Ultra HD resolutions

  • Infrared Signal Input/Output, embedded over extension

  • Supports resolutions from 1080p/60@48bit

  • High bandwidth up to 10.2 Gbps

  • Enables 3D pass-through

  • Supports CEC pass-through

  • HDCP and EDID compliant

  • Audio support: Dolby TrueHD & DTS Master Audio, 7.1 compliant

  • Uncompressed audio support such as LPCM

  • Front panel-LEDs for link activity and HDCP authentication

  • Locking power suppy & HDMI connectors

  • One external power supply 24V DC included
