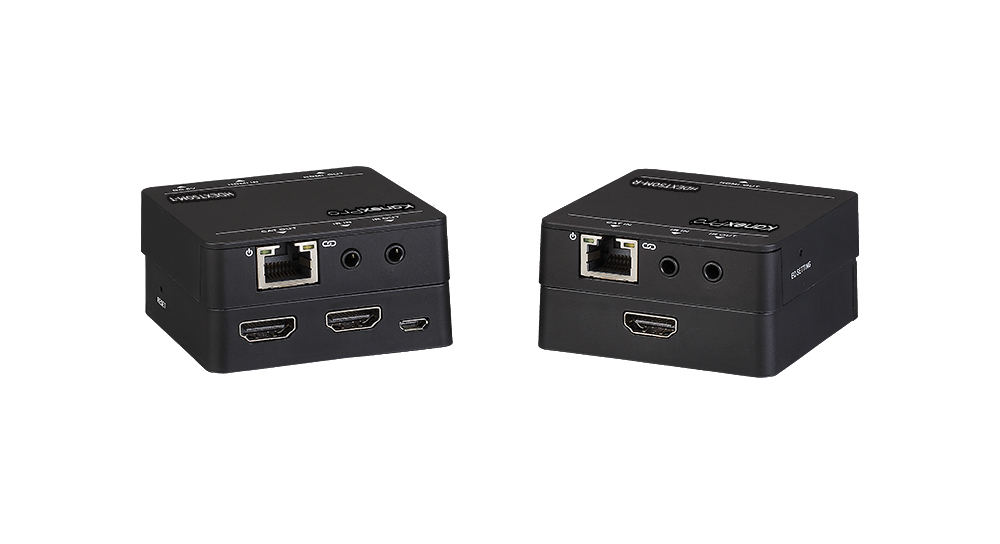

KanexPro HDMI Extender over CAT6 up to 164ft. (50m)
MPN: HDEXT50M


  • The KanexPro HDEXT50M extender is a set of transmitter and receiver which
         sends full HD 1080p/60 HDMI signals over CAT5/5e cable up to 164ft. (50m)

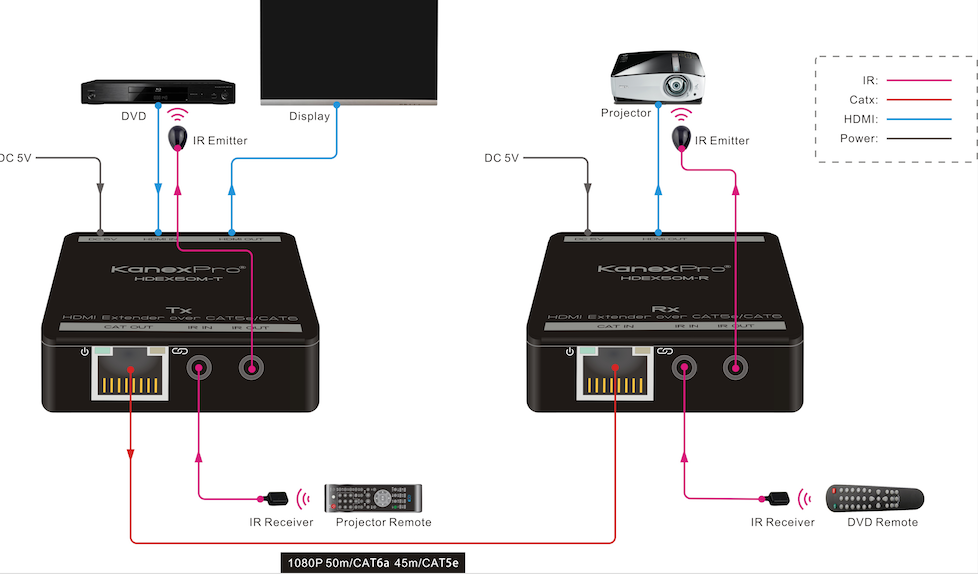

  • Local HDMI out for preview is built-in to the transmitter to quick view using
         confidence monitor. For control, the extender set can send/ receive IR signals from
         each other over CAT5/5e cable with IR pass-through.





  • KanexPro HDMI Extender over CAT6 up to 164ft. (50m)


  • Extend DVI/HDMI over cost-effective Cat5 cable up to 164 ft. (50m)

  • Supports full HD 1080p (1920x1080@60Hz)

  • Local HDMI output (loop out)

  • Built-in EDID to ensure proper HDMI transmission

  • Built in EQ button on the side to compensate for signal equalization

  • Digital audio support through HDMI

  • HDCP 1.4 compliant

  • Bi-directional wideband IR control

  • Plug & Play - no set-up required

  • Includes IR kits & Micro USB based power supplies


  • Applications:
  • Ideally used for home theater, small office, house of worship centers and classrooms, where there is a need to remotely extend HDMI sources such as a Blu-ray player, HDMI laptop, or cable box to an HD 1080p display.
