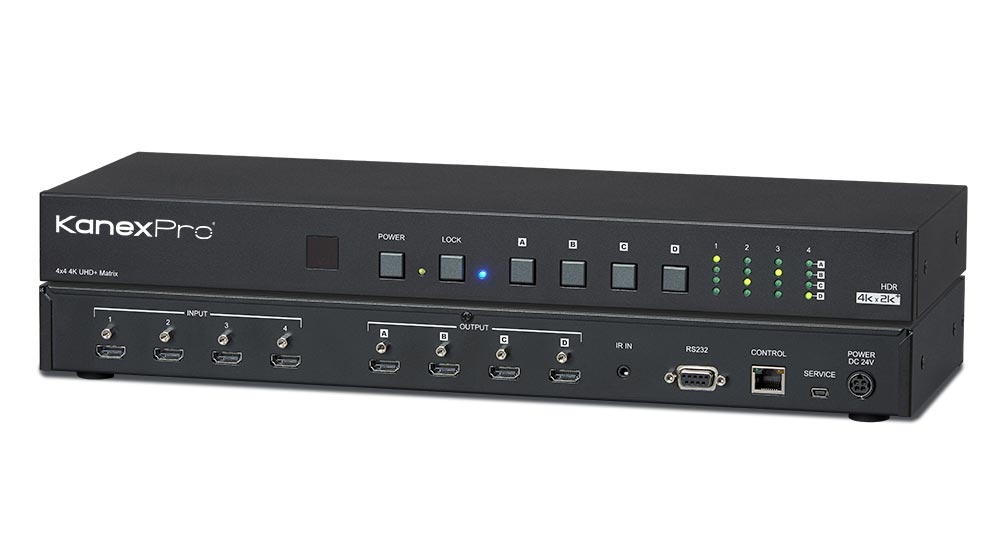

KanexPro 4x4 HDMI 2.0 Matrix Switcher

  • The KanexPro HDMX44-18G is a professional 4-in and 4-out HDMI matrix
         featuring HDCP 2.2 and the latest HDMI 2.0 specifications supporting ultra HD
         resolutions up to 4K @60Hz.

  • Each HDMI port provisions full bandwidth of 18 Gbps with HDR and Dolby Vision

  • It can be fully controlled via RS-232, IR and Web based GUI using Ethernet where
         end-users can switch, control and manage the matrix right from the computer or
         any 3rd party touch-panel or a control system.

  • KanexPro 4x4 HDMI 2.0 Matrix Switcher Features

  • Cross-switch 4 HDMI devices to 4 HDMI displays in 4K@60Hz

  • Distribute 4Kx2K@60Hz signal up to 10m over HDMI (max.)

  • 4K & UHDTV resolutions up to 3840x2160@60 Hz (YUV 4:4:4, 8-bit)

  • True4K @ 4096x2160@60Hz (YUV 4:4:4,8-bit)

  • Supports Dolby Vision & HDR pass-thru

  • Supports 48-bit Deep Color up to 1080p/60

  • Supports LPCM 7.1 pass-thru bit stream

  • HD bit stream audio formats over HDMI

  • HDCP 1.4 & 2.2 Compliant

  • Powerful EDID management tools with 4 slots for user-created EDIDs, and EDID bypass

  • Control via front-panel buttons, IR, RS-232 & Web based GUI

  • Front-panel LED's provides real-time I/O connection status

  • Firmware upgrade via micro USB port

  • Locking HDMI connector screws

  • Universal RS-232 code compatible with any 3rd party control systems

  • Internal Universal power for worldwide compatibility

  • Backed by KanexPro 3 Year parts & labor warranty

  • Applications:
    Perfect for whole house distribution systems and house of worship centers as well as corporate boardrooms where swift, reliable switching and distribution of 4K/60 HDMI signals are critical to meet pixel-by-pixel needs with HDR.
