KanexPro 4K HDMI 1x4 Splitter with HDCP2.2
MPN: SP-HD20-1X44K


  • The KanexPro SP-HD20-1X44K is an one input, four output HDMI Distribution
         Amplifier engineered to split 4K quality videos or high res images from one source
         to four HD 4K displays with resolutions up to 4K@60Hz and HDCP2.2
         specifications.

  • Built-in EDID management allows optimal resolution to be selected and properly
         outputted to avoid response time and delays.

  • The conforming outputs also have the ability of buffering and amplifying all the
         HDMI signals.

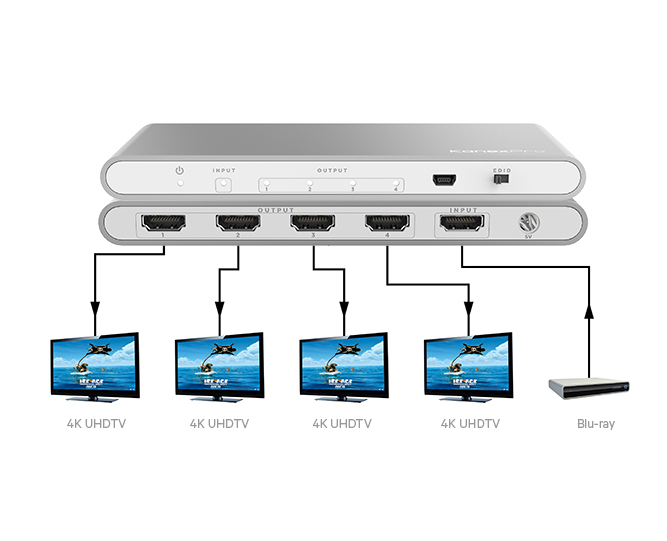

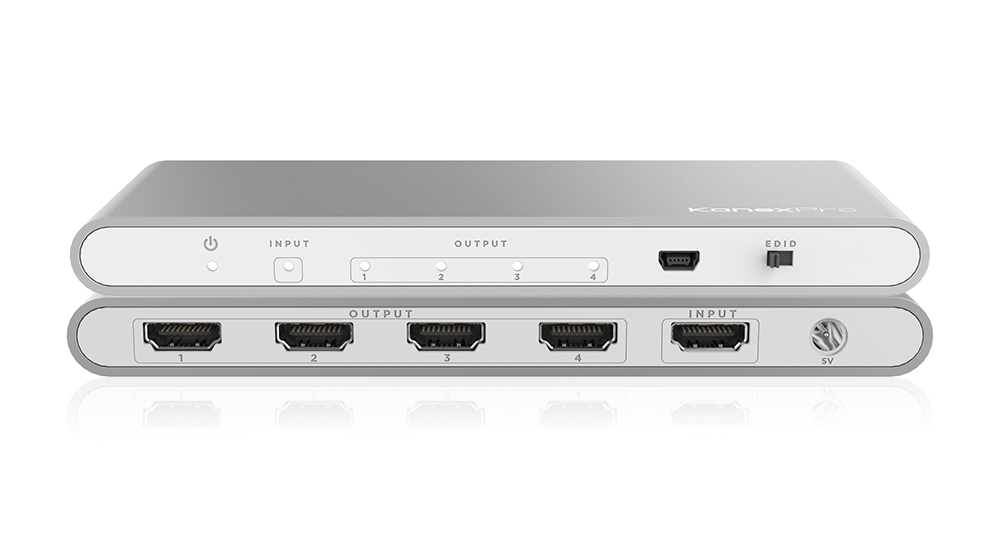

  • KanexPro 4K HDMI 1x4 Splitter with HDCP2.2


  • Distribute one 4K HDMI video and audio signals to four displays

  • 4K@60Hz UHD, 1080p & 3D resolutions

  • 4Kx2K @30Hz with 24bit RGB, YCBCR 4:4:4 & YCBCR 4:2:2

  • 4Kx2K @60Hz with 12bit YCBCR 4:2:0

  • Conforms to High Speed HDMI specifications:

  • (Deep color, HD lossless audio formats & Lip Sync)

  • EDID Selector for optimal resolutions

  • HDCP 2.2 compliant

  • Built-in Smart EDID Control

  • Front-panel LED’s for input/ output signal presence

  • Includes 5V DC external power supply



  • Applications:
    The 1x4 DA fully conforms to the latest High Speed HDMI specifications with HDCP 2.2. This HDMI splitter is optimized for distributing HDMI video and embedded multi-channel digital audio to multiple 4K display environments such as residential or digital signage markets and computer lab applications.
