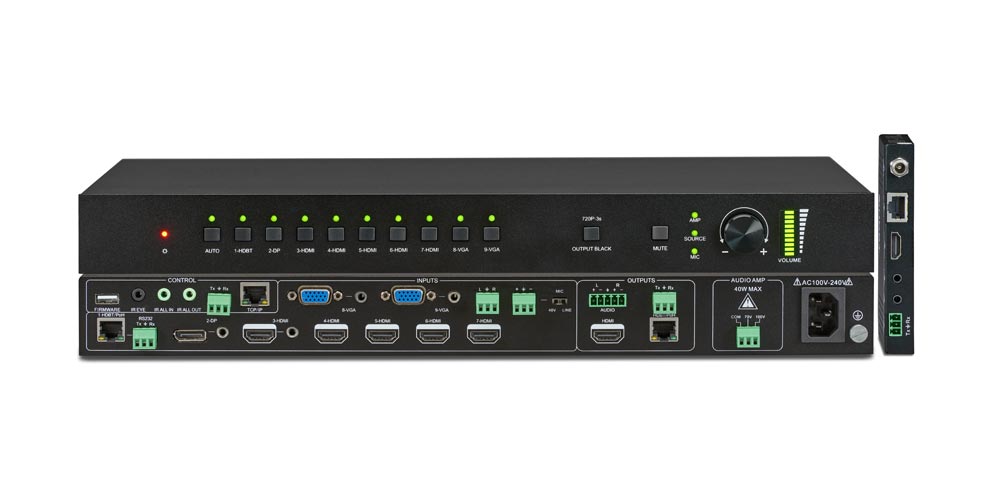

KanexPro 9-Input 4K System Switcher & Scaler


  • The KanexPro SW-HDSC914K is a 9-Input switcher and presentation scaler with
         true 4K input and output resolutions up to 3840x2160p.

  • The nine inputs include 5-HDMI, 2-VGA, 1-DisplayPort and 1-HDBaseT powered
         over HDBaseT.

  • Two simultaneous mirrored outputs over HDBaseT and HDMI can be up-scaled or
         down-scaled to get desired video resolutions with audio and mic function.

  • KanexPro 9-Input 4K System Switcher & Scaler Features

  • Auto switch & scale 9-inputs to two 4K displays

  • DP, HDMI and VGA video inputs can be embedded with external audio

  • Output resolutions selectable to: 1280x720(default), 1920x1080, 1024x768,
         3840x2160@30Hz & 3840x2160@60Hz

  • Supports PoH (Power over HDBaseT) no external power supply necessary to power sender or

  • HDBaseT Input resolutions: 1080p (70m), 4Kx2K(40m)

  • HDBaseT Output resolutions: 1080p(100m), 4Kx2K (70m)

  • Compliant with HDMI 2.0 & HDCP 2.2

  • Built in 40 Watt amplifier for speaker systems

  • Built-in volume control

  • Support Line level or Mic audio inputs

  • MIC port supports balance/unbalance signal & suppresses the external noise effectively

  • Front Panel Buttons, IR, RS-232 and Ethernet for control

  • Bi-directional IR & RS232 pass-through

  • Built-in easy to use Web Interface for control and switching
